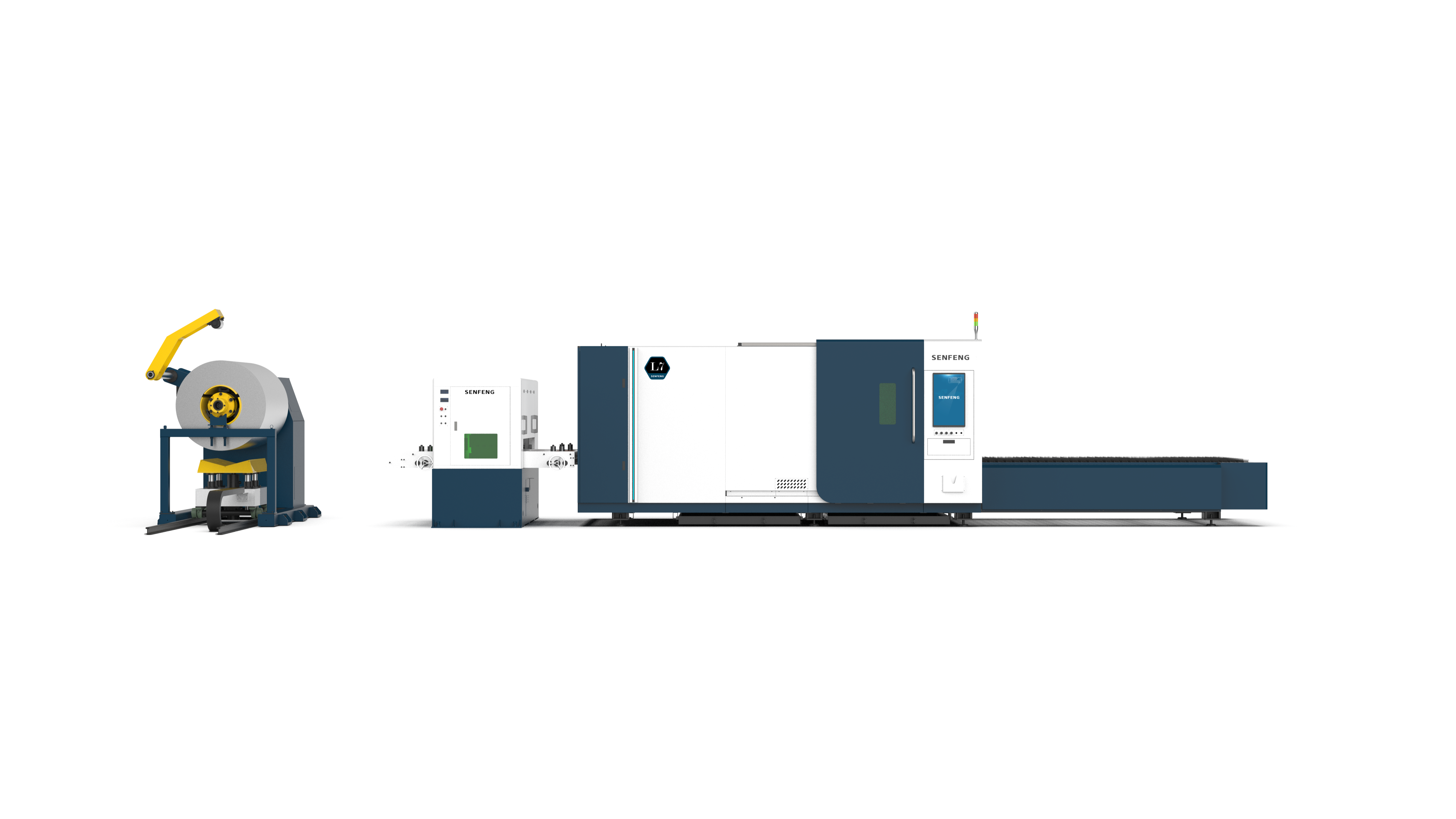

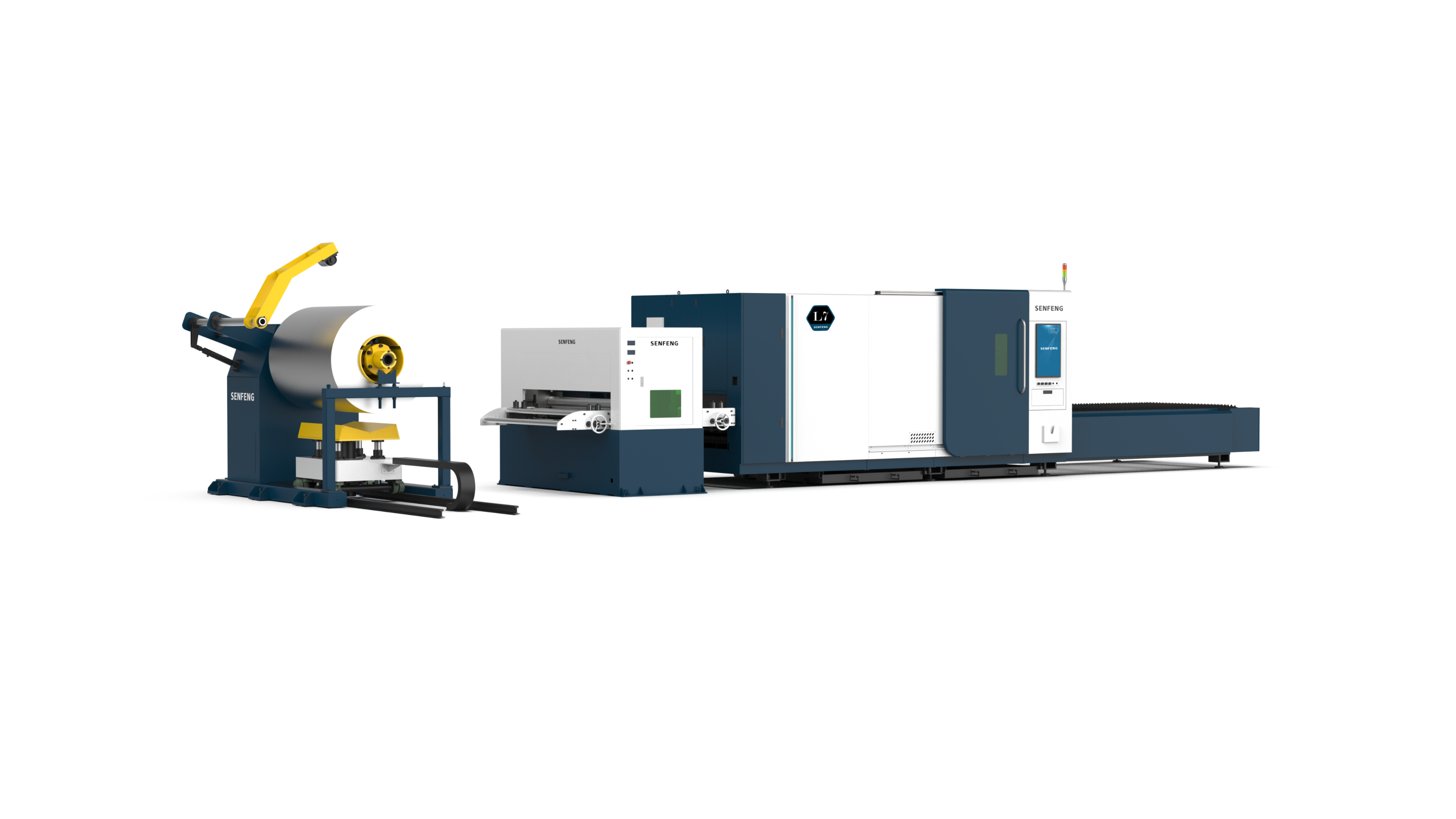

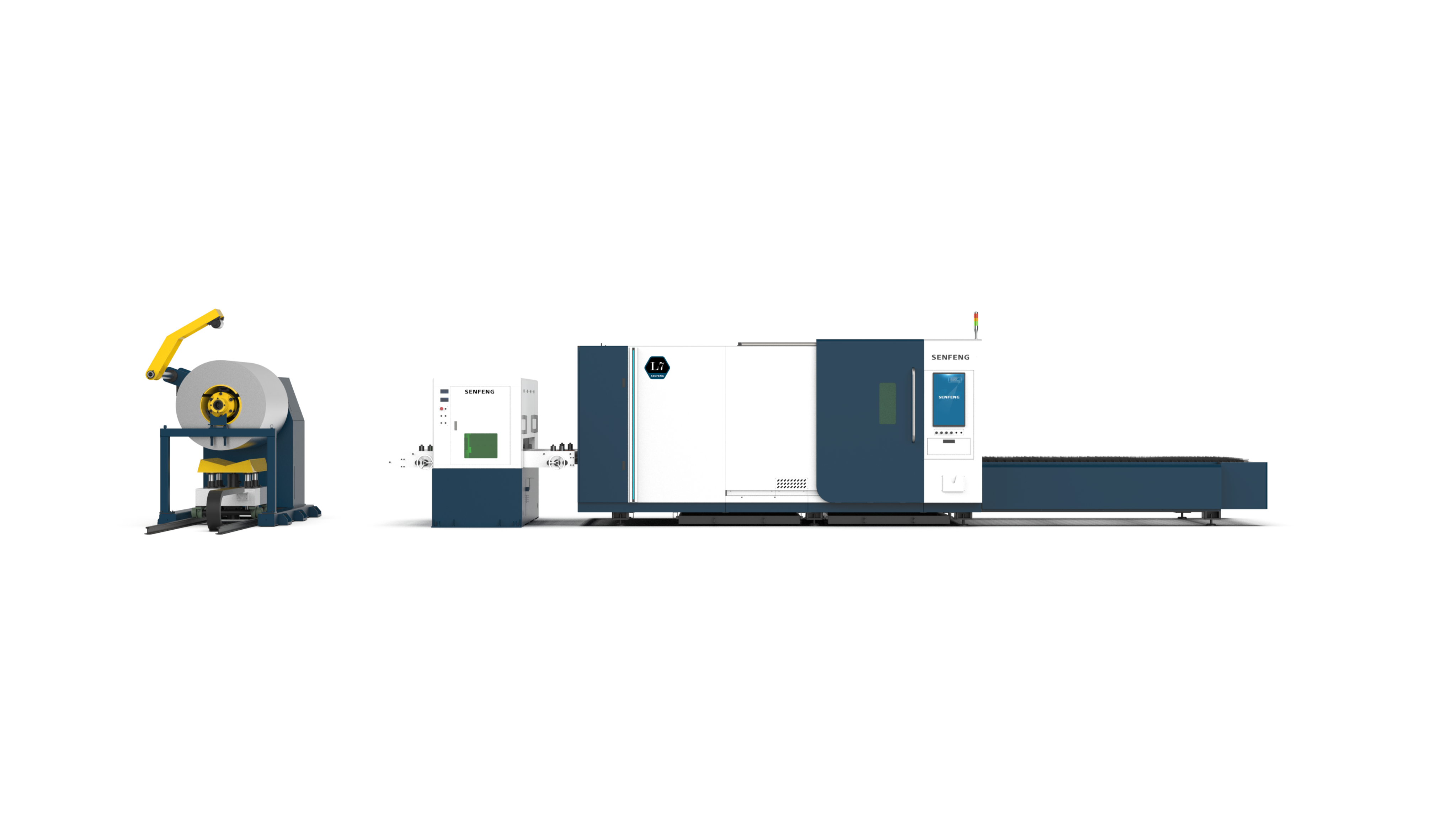

Ultra-thin Coiled Steel Laser Blanking Line 1502CH
* Decoil, level, feed, cut and unload ultra-thin coiled steel, in particular cold-roll steel
* Prefer coiled steels to cut-to-length steel plates to save costs of purchase
* Optionally select tightening sleeves, safety grating and film lamination
* Ideal for both mass production and high-mix, low-volume works
Model | 1502CH |
Laser Power (kW) | 3-6 |
Size of Coiled Steel (L*W, inch) | 118*59 |
Thickness of Coiled Steel (inch) | 0.024-0.079 |
Max. Inner and Outer Diameter of Coiled Steel (inch) | Φ20/Φ24 and Φ31.5-59 |
Max. Weight of Coiled Steel (lb) | 22046 |
Max. Feeding Speed (inch/min) | 591 |
